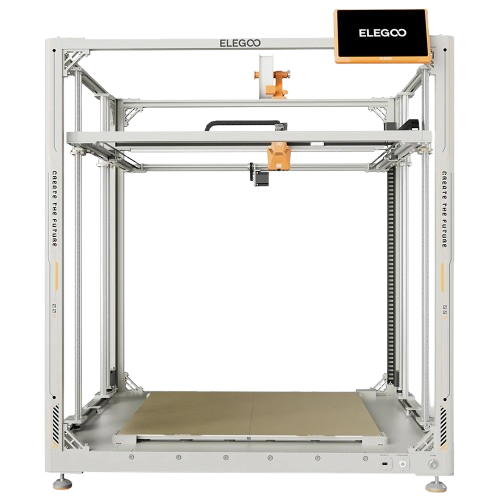

Elegoo Orangestorm Giga
 |

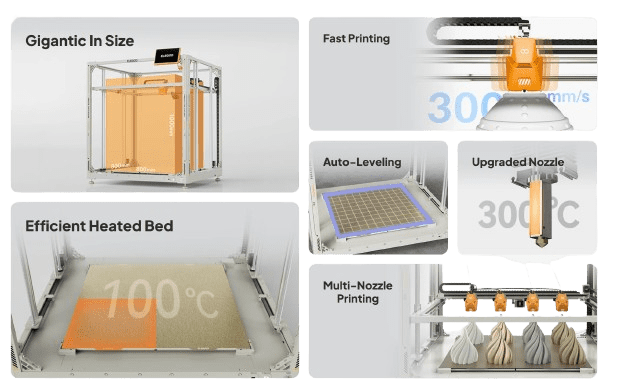

Gigantic in Size

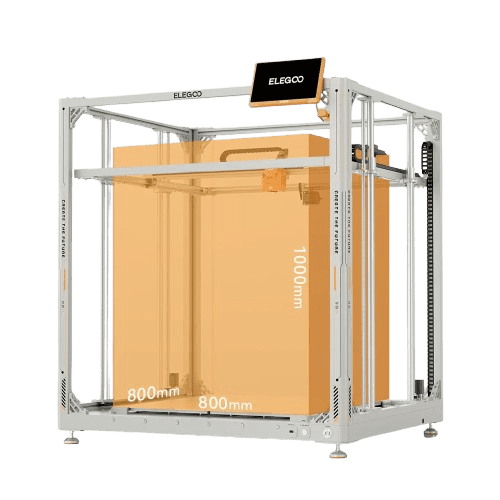

With a build volume of 800mm x 800mm x 1000mm, the industrial-grade FDM printer not only meets the user's printing needs for oversized models, but also reduces the need to cut models into smaller sections for efficient printing. *To better understand how large this printer is: Video or 3D model of Giga.
|
Efficient Heated BedThe heated bed consists of four independent (410*410mm) PEI magnetic high-temperature platforms with a maximum temperature of 100°C. The four platforms can be heated simultaneously to reach 100°C over the entire area in 17 minutes (Ambient temperature: 25℃). The platform where the model is located can also be automatically recognized and heated independently, or manually and independently controlled for increased energy efficiency. |
 |
 |
Fast PrintingUtilizing a 64-bit 1.5G clock speed quad-core high-performance processor (SOC RK3328), it provides sufficient computing capacity while delivering 6 times the printing speed, with a maximum speed of 300mm/s (150mm/s recommended), which is the top end print speed for printers of its size. |
Multi-Nozzle PrintingThree additional printheads can be added to the X-axis to realize simultaneous printing with four nozzles, supporting printing four of the same model, while each nozzle can be equipped with the same material and different color filament to achieve four different colored models of the same kind. The maximum power requirement is 1,530 W. For each additional printhead, an extra 100 W is needed. Please ensure that your setup can accommodate this total power load. |
 |
 |
Powerful Cooling FanThickened double-sided cooling fans can comprehensively enhance the model printing results. In addition, the fans are equipped with an intelligent control function that stops working when printing is complete, which saves energy and reduces noise as well as prolongs the lifespan. (5015 ball blower fan*2, 4010 ball axial fan*1) |
High-Quality CraftsmanshipIntegrated body, elegant yet durable. The X-axis and Y-axis are linear guides, effectively improving printing stability and increasing lifespan. The Z-axis features an upgraded version of the Z-Axis rod to make the machine run smoothly and ensure leveling precision. Machine mounts are designed with a carbon steel round base and rubber round anti-slip pad bottom. |
 |
 |
Powerful Extrusion SystemOrangeStorm Giga features a high-quality brass nozzle capable of reaching 300 °C, ideal for high-temperature materials. The dual-gear direct extruder and titanium heat break ensure consistent filament flow, while the 60 W ceramic heater provides rapid and stable heating. |
| Adopting one-click automatic leveling and a non-contact high-precision sensor to automatically collect 100-point (10*10) of platform data to ensure the platform is level. |  |
